Parametrizer - Blender add-on

What is this for

"Parametrizer" is the Blender add-on for interactively changing mesh geometry through the customizable parameters.

With "Parametrizer" you can make a set of parameters for any mesh that regulates its sizes and ratios. Then you can quickly modify the mesh geometry by simply sliding the parameters fields.

Add-on functionality

To add a new parameter, click "Add new parameter"

Configure the parameter in its panel::

• Name - give the parameter a name
• Mode - set the mode
• TRANSLATION - for moving
• ROTATION - for rotation
• SCALE - for scaling
• By axis - set axes for change the mesh geometry
• Vertices - this parameter will be applied to the selected vertices
• Orientation - adjust the direction of the axes
• Origin - and set the origin for geometry transformation

After pressing the “OK” button the parameter will be added to the mesh

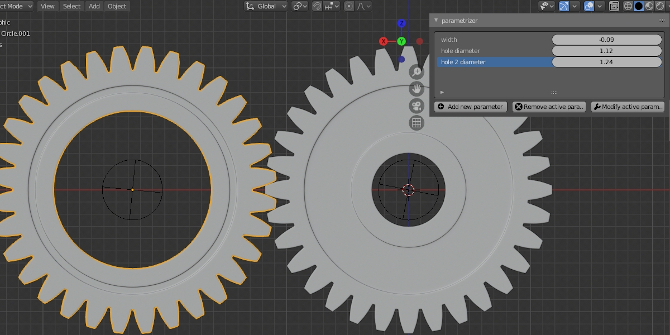

Now sliding the parameter slider in the "Parametrizer" main panel, you can quickly change the mesh geometry

By pressing the "Modify active parameter" or "Remove active parameter" buttons you can change or remove existing parameters

When creating or changing parameters an orientation widget is displayed on the mesh - three axes (green, red, and blue) that show the current parameter coordinate system. All further transformations will perform according to this coordinate system.

Clicking the "Use current orientation" button you will align the parameter coordinate system to the currently visible axes of the mesh.

Clicking on the "Current origin", "From cursor" or "From selection" buttons you move the widget to the mesh origin location, cursor location or the center point of the active selection.

Parameters are saved with the mesh and can be used later when the mesh is appended to another scene, which allows you to create libraries with easily modifiable objects.

Watch this video for more info

https://www.youtube.com/watch?v=6AsxdIRXHjs

Add-on web page

For more information visit https://b3d.interplanety.org/en/blender-add-on-parametrizer/

I would love to hear your feedback and issues to make the add-on better.

Installation

• Download *.zip archive with the add-on distributive
• In Blender: The "Preferences" window — Add-ons — Install... — specify downloaded archive

Location

"3D Viewport" window - N-panel - the "Parametrizer" tab

Current version

1.1.0.

Tested with Blender versions

2.80, 2.81, 2.82, 2.83, 2.90
